Ubiquiti UA-G3-SK-Pro, UniFi Door Access G3 Starter Kit Pro

UniFi Access G3 Starter Kit professional is a professional basic set of components to install the UniFi Access access system. The set is compatible with most electric locks, magnetic locks and a whole range of 12V accessories such as motion sensors, buttons and alarms. The installation of the entire ecosystem is very fast, easy and offers simple management of users, visitors, plans and levels or access permissions via UniFi Access Controller. The set is powered via PoE, which is not included in the delivery.

Overview

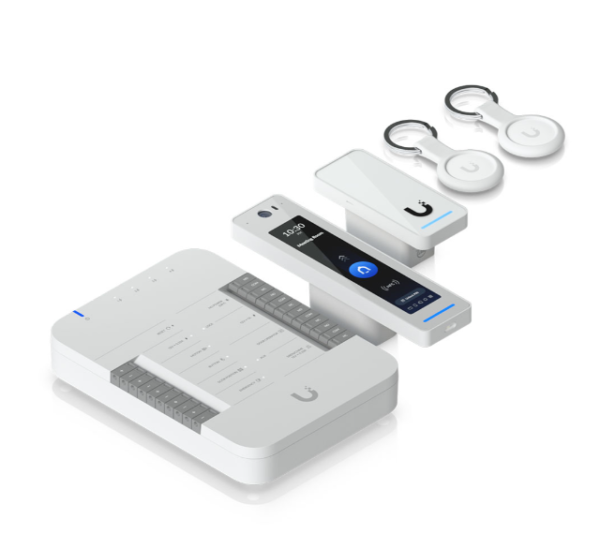

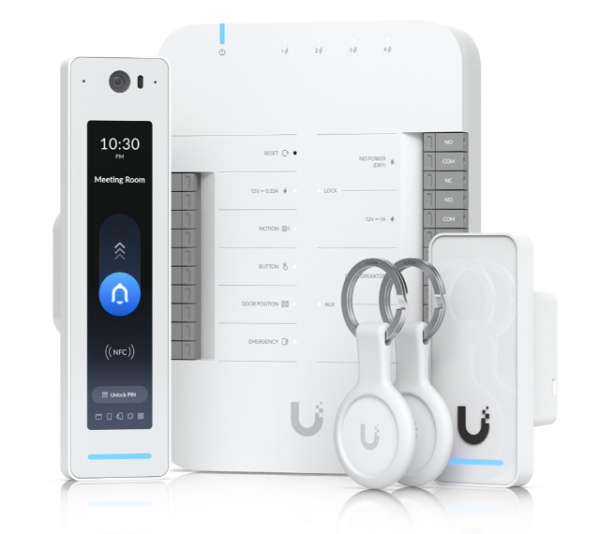

In the Box (1) Door Hub
(1) G3 Reader Pro
(1) G3 Reader
(2) Pocket Keyfobs
Touch Pass 10 free 1-year Touch Passes included

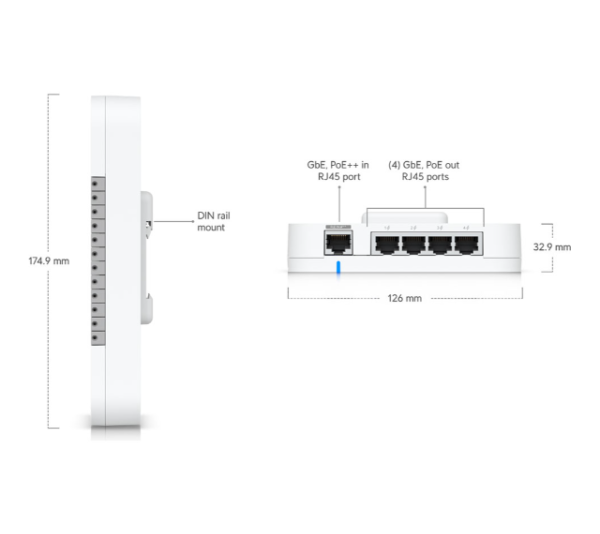

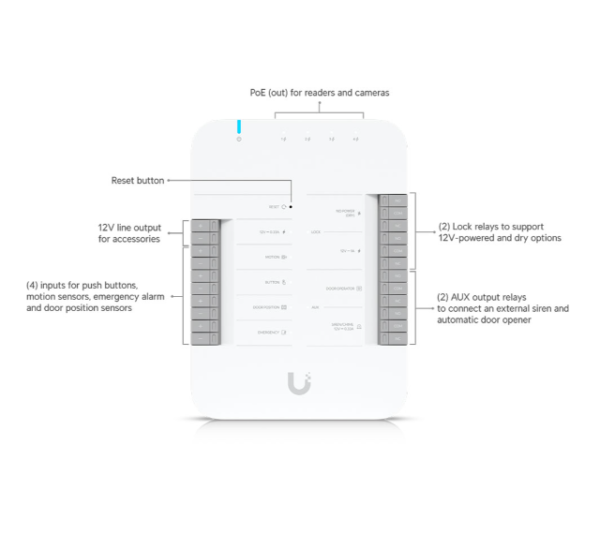

Door Hub
Dimensions 174.9 x 126 x 32.9 mm
Supported Doors 1
Input Terminals (2) Door exit request
(1) Door position
(1) Emergency
Power Method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 363 g
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Mounting DIN-rail (Included)
Ambient Operating Temperature 0 to 40° C
Ambient Operating Humidity 5 to 95% noncondensing
Networking Interface (5) 10/100/1000 Base-T
PoE Interface (1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 30W per port
(Max 45W aggregated)
Max. Power Consumption 30W (Without PoE output) 50W (With PoE output)
Digital Input Request to exit, request to enter, remote release, door position sensor
Dry Output Relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered Output Relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
LEDs B/W
Button (1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric (400mA) 24 AWG length: 25 m
22 AWG length: 42 m
20 AWG length: 66 m
18 UACC-Cable-DoorLockRelay length: 100 m
UA-Lock-Magnetic-540kg (500mA) 24 AWG length: 20 m
22 AWG length: 32 m
20 AWG length: 51 m
18 UACC-Cable-DoorLockRelay length: 80 m
UA-Lock-Magnetic-270kg (800mA) 24 AWG length: 12 m
22 AWG length: 20 m
20 AWG length: 30 m
18 UACC-Cable-DoorLockRelay length: 46 m
Other locks (1A) 24 AWG length: 9 m
22 AWG length: 15 m
20 AWG length: 24 m
18 UACC-Cable-DoorLockRelay length: 36 m
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-Hub-Door002, V01

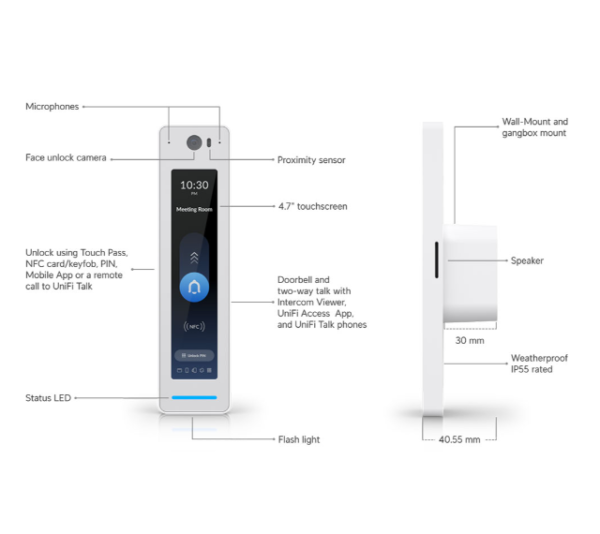

G3 Reader Pro
Dimensions 160 x 40.4 x 40.55 mm
Integrated Camera Yes
NFC Card & Keyfob Access Yes
PIN Access Yes
Apple/Google Wallet Yes
Mobile Unlock Yes
Two-Way Intercom & Doorbell Access Yes
Weatherproofing IP55
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 136 g
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use Yes
Ambient Operating Temperature Device: -30 to 45° C
Display: -10 to 45° C
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 6W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Display 120 mm
Touch Screen Technology Capacitive touch
Display Luminance 480 nits (Typical)
Screen Orientation Portrait
Resolution 1280 x 286 px
Microphone Yes
Speaker (1) Yes, 1.5W
LEDs R/G/B/W/Amber Learn More
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18”)
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3-Pro-W/UA-G3-Pro-B, V01

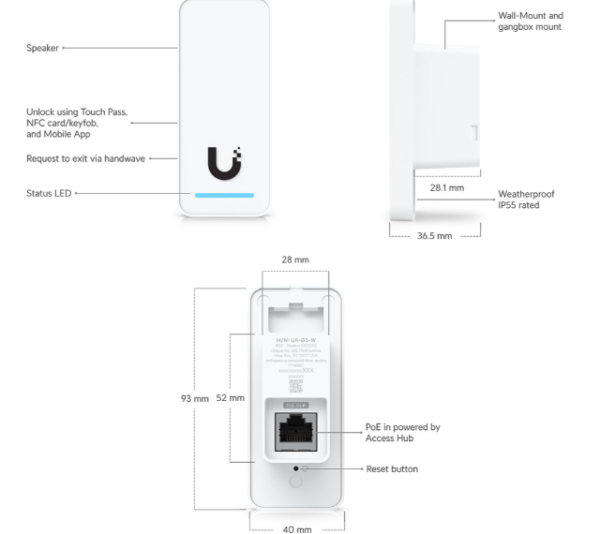

G3 Reader
Dimensions 93 x 40 x 36.5 mm
NFC Card & Keyfob Access Yes
Apple/Google Wallet Yes
Mobile Unlock Yes
Handwave Request to Exit Yes
Weatherproofing IP55
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 82 g
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting In-wall, gang box (Included)
Junction box (Optional)
Indoor and Outdoor Use Yes
Ambient Operating Temperature -30 to 45° C
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 5W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) Yes, 0.7W
LEDs R/G/B/W Learn More
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3, V01
Pocket Keyfob
Dimensions 84 x 39 x 7.4 mm
Weight 16 g
Enclosure Material Polycarbonate, stainless steel, silicone rubber
Weatherproofing IP54
NDAA Compliant Yes
Ambient Operating Humidity 10 to 90% noncondensing
Ambient Operating Temperature -10 to 45° C
NFC Frequency 13.56 MHz
NFC Technology ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Certification CE

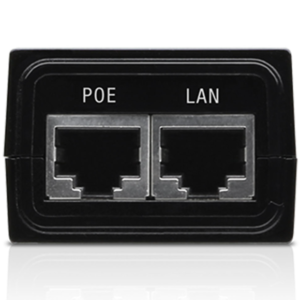

Ubiquiti POE-50-60W Gigabit PoE Adapter 50V, 1.2A, 60W for AirFiber with power cable

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Protect / airVision®
• UniFi LED
• UFiber
* Check product specifications to verify PoE compatibility

Ubiquiti PoE Adapter Compatibility with the airGateway™
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway plugs into any of these PoE Adapters:

Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

Potential for ESD

Protection Against ESD

Specifications
Dimensions 101 x 60 x 33 mm
Weight 192 g
Output Voltage 50VDC @ 1.2A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Input Voltage 100-240VAC @ 50/60Hz
Input Current 1.3A @ 120VAC, 0.75A @ 230VAC
Efficiency 85+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature 0 to 40°C
Storage Temperature -30 to 70°C
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Certifications CE, FCC, IC, UL



Weight 0,350 kg
Dimensions 25 × 25 × 15 cm
Manufacturer

Ubiquity

Model

UA-G3-SK-PRO + POE-50-60W, UA-G3-SK-PRO, POE-50-60W
